Utilizing Ground Penetrating Radar for Groundwater Monitoring and Contaminant Detection in Environmental Studies

Groundwater contamination presents a persistent challenge in environmental science. With approximately half of the drinking water in the United States originating from wells, protecting groundwater resources is critical. Non-invasive technologies are increasingly being adopted to meet this challenge, and Ground Penetrating Radar (GPR) is emerging as an innovative solution for monitoring groundwater conditions and identifying subsurface contaminant pathways.

Click the video to learn more about how GPRS supports Environmental Consultants

GPR systems are widely known for their utility in infrastructure and construction, but they also play an important role in supporting environmental assessments. GPRS offers a range of professional services that utilize GPR and utility locating tools to visualize subsurface infrastructure and anomalies with precision.

Ground Penetrating Radar: Principles and Mechanism

GPR operates based on electromagnetic wave propagation. The system transmits high-frequency pulses into the ground and analyzes the return reflections produced at boundaries between materials with different dielectric properties. These reflections are interpreted as hyperbolic shapes or signal disturbances in radar scans, which indicate the presence of voids, structures, or zones affected by contamination.

This method enables the creation of detailed subsurface profiles. Because GPR data is gathered from the surface, it significantly reduces disruption to the ground and its surrounding ecosystems. The accuracy and immediacy of GPR scans allow environmental professionals to interpret findings and make decisions without extensive excavation or drilling.

Understanding Contaminant Behavior

Contaminants infiltrate groundwater from both point sources, such as leaking storage tanks, and nonpoint sources like agricultural runoff. Once contaminants enter an aquifer, the slow movement of groundwater means affected areas can remain compromised for extended periods. Many pollutants are difficult to eliminate, and cleanup efforts can be both costly and ineffective depending on geological and chemical complexities.

Cases like Flint, Michigan, illustrate the dire consequences of contaminated groundwater systems. Lead infiltration, suspected legionella bacteria, and repeated violations of water safety regulations resulted in a public health crisis. Residents reported foul-smelling, discolored water, and government investigations confirmed violations of the Safe Drinking Water Act. Although improvements have been made over the past decade and the EPA now considers lead levels acceptable, the situation exposed the fragility of aging water infrastructure.

Outdated facilities and deteriorating underground systems continue to pose risks to groundwater nationwide. Noninvasive technology like GPR plays an important role in helping identify potential issues early, before they escalate into large-scale emergencies.

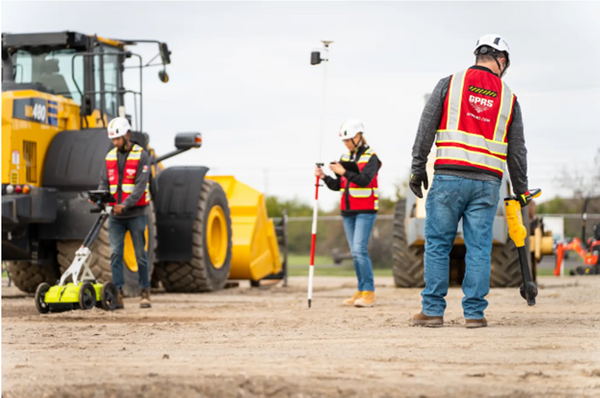

Ground Penetrating Radar, Electromagnetic Locating, GNSS RTK positioning technology and other complementary technologies can all be used to support Environmental Site Assessments.

Environmental Site Assessments and Subsurface Detection

GPRS assists environmental specialists in conducting Phase I and Phase II Environmental Site Assessments (ESAs). Whether for compliance monitoring or property transactions, these surveys demand accurate subsurface utility maps. GPR supports these efforts by locating underground features and identifying pathways through which contaminants might travel.

In addition to mapping existing utilities, GPRS generates high-fidelity Conceptual Site Models (CSMs). These models allow for the visualization of utility systems and void spaces in three dimensions. With up to 99.8% accuracy achieved across over 500,000 projects nationwide, the insights provided by GPRS help clients visualize site conditions prior to performing invasive investigations.

Although GPRS does not engage in contaminant hydrology analysis, radar data can indicate the presence of liquid organic compounds. These contaminants often possess dielectric properties distinct from natural soil and rock formations, and they stand out in GPR scans. This makes GPR a useful tool in supporting hydrogeological studies aimed at estimating porosity, water saturation, and permeability, key parameters in predicting contaminant behavior.

Broader Applications of GPR in Environmental Science

GPR is adaptable across disciplines, supporting both small-scale utility investigations and large-area imaging. In environmental studies, typical applications include:

  • Geological Characterization: Mapping subsurface layers, fault lines, and soil composition.
  • Archaeological Investigations: Locating historical artifacts and buried landscapes.
  • Infrastructure Surveys: Assessing the condition of water mains, sewer lines, and bridge foundations.

Additionally, GPR is employed in environmental science to assist in groundwater resource monitoring. Examples include:

  • Water Table Identification: Establishing the depth and variability of groundwater.
  • Aquifer Analysis: Distinguishing between permeable and impermeable zones.
  • Recharge Zone Tracking: Mapping flow paths and evaluating the health of aquifers.

These capabilities are foundational in developing hydrological models that inform policy and remediation strategies.

Contaminant Detection and Remediation Support

Detecting and tracking contaminants is essential for maintaining environmental safety. GPR contributes to this task by aiding in:

  • Plume Visualization: Outlining the spread of contaminants through soil and groundwater.
  • Material Differentiation: Separating natural geological layers from artificial or contaminated zones.
  • Remediation Monitoring: Assessing cleanup efficacy through comparative pre- and post-treatment surveys.

While GPRS does not specialize in pollutant analysis, its subsurface mapping services are vital for environmental engineers evaluating contaminant distribution and mitigation effectiveness.

Benefits and Challenges of GPR Technology

GPR provides several key advantages over traditional invasive methods:

  • Minimal Disturbance: Preserves natural habitats and cultural heritage sites.
  • Immediate Results: Offers rapid access to subsurface data for fast decision-making.
  • Detailed Imaging: Delivers high-resolution models suitable for technical analysis.

Some limitations must be considered. Geological conditions with high moisture or dense clay can reduce penetration depth and image clarity. Additionally, skilled interpretation and post-processing are required to validate findings accurately.

Advancing GPR for Environmental Applications

Ongoing developments continue to enhance GPR performance and utility. These include:

  • Integrated Mapping Platforms: Technologies like SiteMap® (patent pending), developed by GPRS, unify georeferenced utility data with CAD models, BIM files, photos, and site videos. This all-in-one platform enables clients to visualize and manage subsurface data efficiently. It is available to all GPRS customers at no additional cost, with tiered subscription options for broader facility needs.
  • Improved Hardware: Development of high-frequency antennas and advanced signal processing tools is increasing image resolution and scan depth.
  • Automated Systems: Robotics and autonomous platforms are beginning to deliver GPR capability in hazardous or remote locations where manual surveys may be impractical.

These innovations point to a future where environmental monitoring becomes more proactive, precise, and integrated with other data systems.

Visualizing the Subsurface with Confidence

GPRS applies GPR technology with a focus on accuracy and client safety. By identifying subsurface utilities and structural features without excavation, the company provides vital data for environmental assessments and contaminant pathway detection. Whether in urban redevelopment projects or groundwater protection initiatives, GPRS helps professionals visualize complex site conditions to make informed decisions.

The shift toward non-invasive scanning technologies represents an important step forward in managing environmental risk. With high-resolution imaging and real-time data delivery, GPR is helping transform how we see, evaluate, and protect the world beneath our feet.
