Advanced Leak Detection Strategies for Buried Pressurized Water Lines and Fire Suppression Systems

The Critical Role of Leak Detection in Facility Management

Undetected leaks private or public pressurized water utilities or fire suppression systems can lead to significant financial losses, structural damage, and compliance violations for facilities managers. As infrastructure ages, the demand for precise and efficient leak detection methods will only increase.

Current available technologies, including acoustic leak detection and leak noise correlators, provide facilities managers with the tools needed to create strategies to combat water loss, and the rising bills and damage it can produce.

Challenges in Detecting Buried Water Line Leaks

Pressurized water pipes, including buried water distribution systems and sometimes, fire suppression loops, are subject to environmental stressors such as ground movement, corrosion, temperature fluctuations, and external pressure from construction or manufacturing activities. All of these factors contribute to leaks that, if left undetected, can compromise system efficiency and safety.

Traditional leak detection methods, such as visual inspections and pressure monitoring, often fail to pinpoint leaks accurately. This limitation has driven the development of a strategy of complementary technologies GPRS can use to pinpoint pressurized line leaks effectively, and provide comprehensive water loss surveys for facilities and municipalities nationwide.

Learn how GPRS helped one facility in the Pacific Northwest stop losing as much as 500,000 gallons of water per day, here.

Acoustic Leak Detection: A Foundational Approach

Acoustic leak detection remains a cornerstone of modern leak detection methodologies. Pressurized water escaping from a pipe generates distinct sound waves that can be “heard” with equipment and training. Leak detection specialists like GPRS Project Managers train their ears to pick out the various pitches of leaks, and are often able to make an educated guess as to the pipe diameter, flow rate, and size of the leak, just from listening to it. Specialized technology helps detect and amplify leak sounds, allowing us to pinpoint its location.

How Acoustic Leak Detection Works

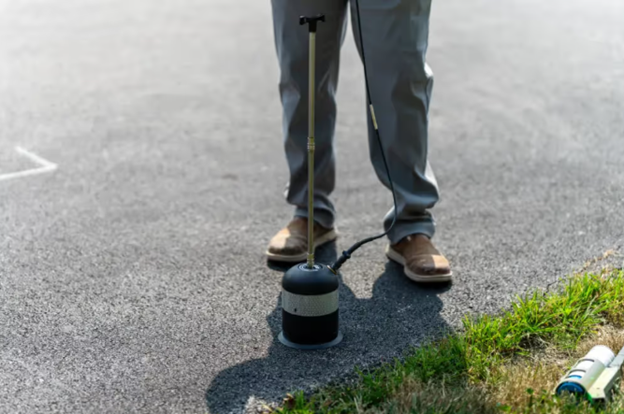

Listening Devices – Ground microphones and acoustic sensors capture leak-generated sound waves. Additionally, amplifiers like the “elephant foot” can be utilized to help bring the buried line sounds to the surface for easier detection.
Sound Analysis – Advanced software filters background noise to isolate leak-specific frequencies so that the Project Manager can follow the sound more easily.
Pinpointing the Leak – Project Managers can then analyze sound intensity and variations to zero in on the leak and accurately pinpoint it.

Advantages of Acoustic Leak Detection

Non-Invasive – Acoustic leak detection requires no excavation until you are ready to pothole to verify the location and repair the leak.
Cost-Effective – This methodology is applicable to virtually any pressurized water line leak and can be used over a wide variety of pipe materials, diameters, and systems.
Efficient – As mentioned, acoustic detection techniques minimize guesswork to provide the most likely specific leak locations, greatly reducing the amount of time you need to find the leak.

Limitations of Acoustic Leak Detection

There are some limitations to acoustic leak detection, as with any technology or strategy. Knowing them in advance can help you to minimize their effect on your leak investigation.

Environmental Noise – Traffic and construction noise can interfere with detection. That’s why GPRS advises that leak investigations be conducted when traffic is at a minimum, particularly in congested areas.
Pipe Material Sensitivity – Plastic/PVC pipes transmit sound less effectively than metal pipes. This does not necessarily mean that the Project Manager can’t hear a leak, but it may make the exact location slightly harder to detect.
Depth and Soil Conditions – How deeply the lines are buried, the composition of the surrounding soil, and how many other lines may surround the leaking line can impact acoustic leak detection efficacy. That’s why Subsurface Investigation Methodology (SIM), requires employing supplemental technologies and methods to cross-check acoustic findings.

Once you’re aware of the ways acoustic leak detection can be impacted by outside factors, and how SIM-certified leak detection specialists mitigate those factors, you can see why this strategy remains a fundamental tool for facilities managers seeking a proactive, non-destructive approach to water loss.

Leak Noise Correlators: Enhancing Detection Accuracy

Leak noise correlators represent a significant advancement in leak detection technology that act as a complement to acoustic leak strategies. Correlators utilize sophisticated algorithms to pinpoint leaks with precision, even in complex environments.

How Leak Noise Correlators Work

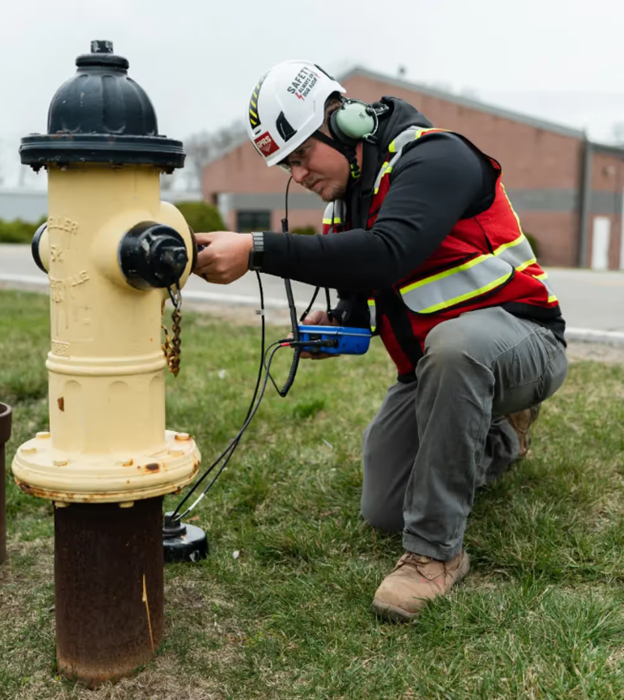

Sensor Placement – Multiple sensors are positioned along the pipeline. At minimum, you need to ground the device, usually on the nearest fire hydrant, or above-ground valve placement attached to the water system, with another sensor placed past where the leak location is estimated, on a similar structural element.
Signal Transmission – The sensors then relay detected sound vibrations to a central processing unit. The vibrations appear as spikes and troughs on the correlator operator’s hand-held unit.
Cross-Correlation Analysis – Customized algorithms then compare the arrival times of the signals from the sensors to determine the location of any leaks.
Data Interpretation – The correlator’s digital interface will then display the leak positions and pipe conditions it has detected.

Advantages of Leak Noise Correlators

High Accuracy – Sensor placement and the speed at which the sound waves move helps to pinpoint leaks within inches of their actual location.
Effective in Noisy Environments – A major advantage of this technology is its ability to filter out background noise, making it especially valuable in heavy construction zones or high-traffic areas.
Adaptability – Correlators work best when sensors can be placed on metal objects to ground them, but experienced operators can utilize correlators with various pipe conditions, and can factor in those variations in the leak detection algorithm.

Limitations of Leak Noise Correlators

Just like with the acoustic equipment, there are limitations to leak correlator technology. Understanding these limiting factors can help to mitigate them.

Complexity and Cost – A leak correlator unit can cost between 2,500 and $32,000, depending on type, and requires specialized training to program and work with the advanced software. Rental cost for a leak correlator is approximately $1,500 per month.
Sensor Placement Challenges – Optimal sensor positioning may be difficult in restricted environments or where aboveground metallic system features are sporadically placed or missing.
Power Requirements – Depending on the correlator model used, you may need a stable power source during its deployment. Most correlators used in the field today, however, are equipped with adequate battery power to do the job.

Leak noise correlators provide facilities managers with a powerful tool for maintaining infrastructure integrity and preventing costly failures. And in the hands of an experienced leak detection specialist near you, like a GPRS Project Manager, they are an invaluable complementary technology that allows us to pinpoint leak locations, often within inches. This allows you to only daylight what you need to repair the leak, reducing costs and repair time.

Future Innovations in Leak Detection

The future of leak detection is poised for significant advancements. Emerging technologies such as artificial intelligence (AI) and machine learning are expected to enhance detection accuracy and predictive maintenance capabilities. Some are experimenting with satellite-based remote sensing and even drone technology for leak detection solutions, that may one day enable leak detection specialists to have new tools for large-scale analysis.

GPRS additionally can provide annual water loss surveys of your subsurface pressurized water system and/or fire suppression loops to help you proactively plan for facility maintenance and repairs.

Industry-Leading Leak Detection Services

GPRS specializes in pinpoint-accurate leak detection for buried utility lines and fire suppression systems. Utilizing acoustic leak detectors, leak noise correlators, video pipe inspection, ground penetrating radar (GPR), and electromagnetic (EM) locating, GPRS provides facilities managers with actionable insights into their infrastructure.

With a nationwide footprint, you can always find a GPRS leak detection specialist near you. It’s just one of the ways we Intelligently Visualize The Built World® for our customers.
